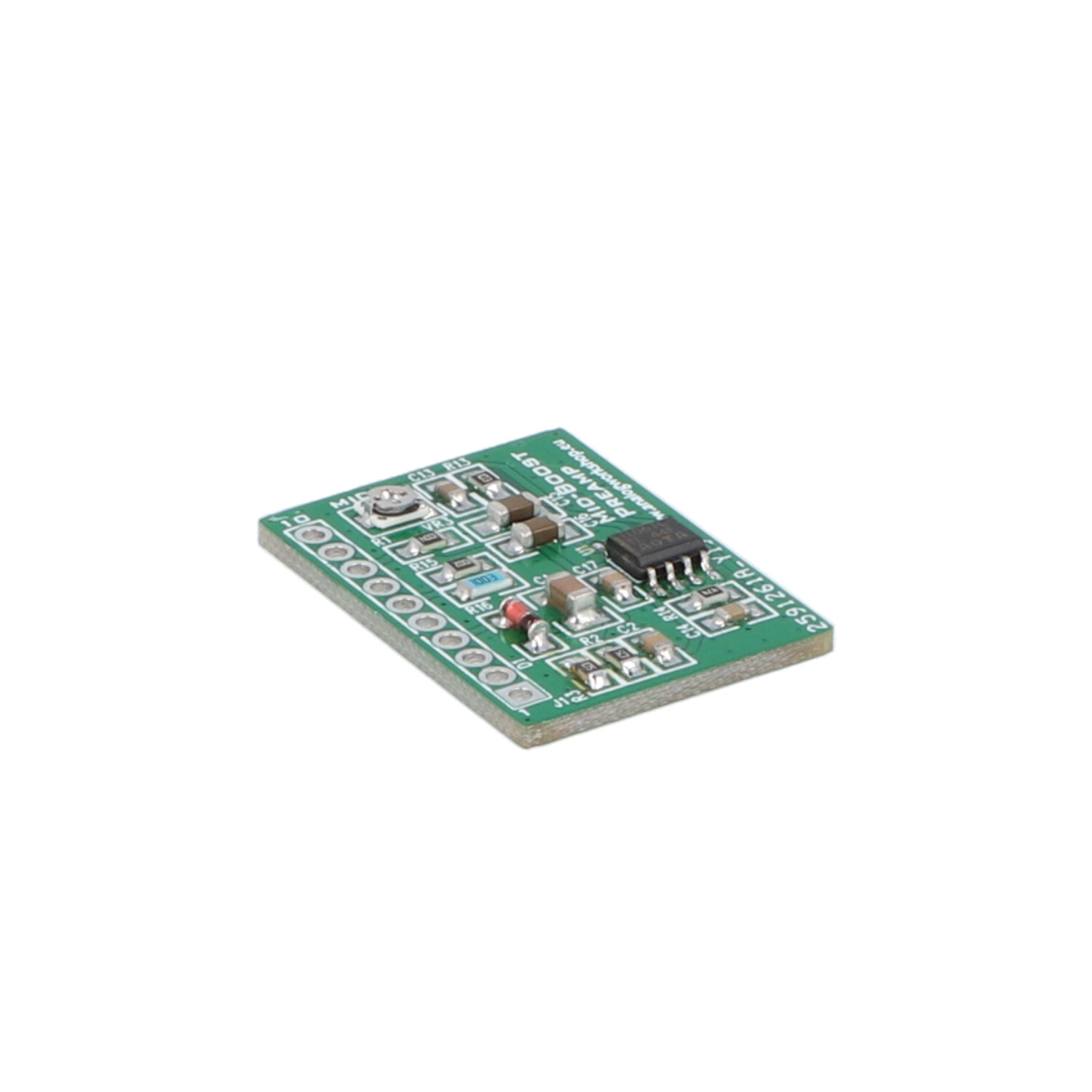

The presented Mid-Boost is a miniature built-in guitar preamplifier, based on the Blade VSC-3 with a modification that changes the work of the preamplifier in relation to the original version. In this version, the preamp works as a booster for medium frequencies. The Mid-Boost Preamp is equipped with SMD potentiometer for gain adjustment.

Mid-Boost Preamp is based on a low-noise and energy-saving, dual operational amplifier, selected in terms of operating parameters. All the components used on the PCB are in the SMD version, thanks to which it was possible to make a preamp with smaller dimensions and also with improved functionality.

Features:

 >   Preamp is analog design,
 >   Low noise op-amp on board,
 >   Handmade, high quality, each preamp tested,
 >   Power: 9V battery (the battery is not included),
 >   EQ: 600Hz,
 >   Low current consumption
 >   High input impedance,
 >   Low noise,
 >   Small size: 22 x 30 x 3.5 mm
 >   Easy installation on guitar,
 >   Included: manual (pdf), battery connector, 6.3mm stereo jack (socket),
 >   Ability to work with other instruments than guitars.

PRICE: 25 EUR
