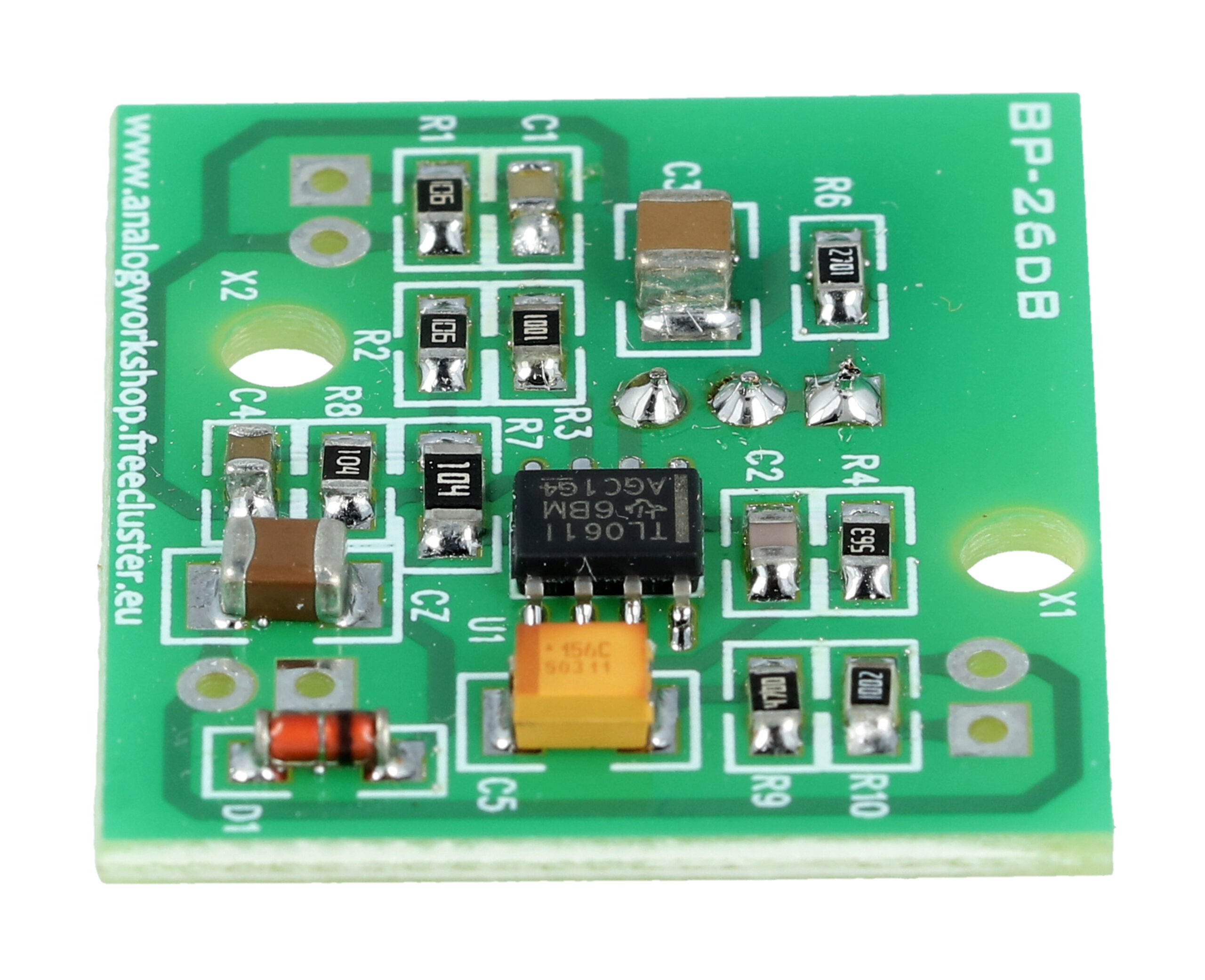

The BP-26dB preamp is another miniature onboard guitar preamp, built to achieve even bigger gain than the G-201 or even G-501 preamps provided. The BP-26dB preamp, as the name suggests, can reach a gain of up to 26dB, which can be conveniently set using the multi-turn potentiometer used in the circuit.

The heart of the BP-26dB preamplifier is the low-noise TL061 operational amplifier, the parameters of which ensure good system operation, and the small dimensions allow the preamplifier to fit in practically any guitar.

When building this preamplifier, the intention was to get the functionality of the MXR MicroAmp, but at the same time, the assumption was that the circuit should be as small as possible and could work as an on-board pramp.

Features:

 >   Preamp is analog design,

 >   Low noise op-amp on board,

 >   Handmade, high quality, each preamp tested,

 >   Power: 9V battery (the battery is not included),

 >   Adjustable Gain up to 26dB,

 >   A multi-turn potentiometer for precise Gain setting,

 >   High input impedance,

 >   Low noise,

 >   Small size: 30 x 26 x 8.5 mm

 >   Easy installation on guitar,

 >   Included: manual, battery connector, 6.3mm stereo jack (socket),

 >   Ability to work with other instruments than guitars.

PRICE: 20 EUR
